sofia_redux.pipeline: Data Reduction Pipelines for SOFIA

The sofia_redux.pipeline package is a data reduction interface for astronomy pipelines. It provides interactive and command-line interfaces to astronomical algorithms.

This package was developed to support data reduction pipelines for the SOFIA telescope, but is designed to be a general-purpose interface package to any arbitrary series of data reduction steps.

Getting Started

Running SOFIA pipelines

Out of the box, Redux provides two command-line scripts:

• redux (sofia_redux.pipeline.sofia.redux_app): An interactive graphical interface (GUI) for the SOFIA pipelines.

• redux_pipe (sofia_redux.pipeline.sofia.redux_pipe): A command-line interface to the SOFIA pipelines.

In general, Redux works by reading in input data, deciding which reduction to run, then running a pre-defined set of reduction steps.

The GUI allows interactive parameter editing, and intermediate product display for each step. To begin a reduction, start the GUI by typing redux, then load in a set of data with the File->Open New Reduction menu.

The command-line interface allows fully automatic pipeline reductions. To begin a reduction with the automatic pipeline, type redux_pipe and provide the file names of the data to reduce on the command line. Non-default parameters can also be provided by specifying a configuration file in INI format.

Displaying FITS data

This package also provides a stand-alone front end to some of its display tools (sofia_redux.pipeline.gui.qad). The command line script qad (sofia_redux.pipeline.gui.qad.qad_app) starts a small GUI that allows interactive display of FITS images and spectra in DS9 and a native spectral viewer (sofia_redux.visualization.eye). To use it, DS9 must be installed (see http://ds9.si.edu/), and the ds9 executable must be available in the PATH environment variable.

To use the QAD, start up the GUI by typing qad at the command line, then double-click on a FITS image to display it. Display preferences can be set from the ‘Settings’ menu

Developing new pipelines

Redux is designed to be a development platform, for running any sequence of data reduction steps. To use Redux to develop a new pipeline, the following are necessary:

• A reduction class that inherits from the sofia_redux.pipeline.Reduction class. This class defines all data reduction steps, and the order in which they should run.

• A parameter class that inherits from the sofia_redux.pipeline.Parameters class. This class should provide default parameters for the steps defined in the reduction object.

• A reduction object chooser class that inherits from the sofia_redux.pipeline.Chooser class. The chooser decides from input data which reduction object to instantiate.

• A configuration class that inherits from sofia_redux.pipeline.Configuration. This class provides default parameters for the interface, such as default log file names, and specifies the reduction chooser.

• A pipe script that instantiates a sofia_redux.pipeline.Pipe object with the appropriate configuration.

• An application script that instantiates a sofia_redux.pipeline.Application object with the appropriate configuration.

Optionally, custom viewers may also be defined for displaying intermediate data products. These should inherit from the sofia_redux.pipeline.Viewer class.

See the sofia_redux.pipeline.sofia module for examples of all these classes and scripts.

Architecture

Redux is designed to be a light-weight interface to data reduction pipelines. It contains the definitions of how reduction algorithms should be called for any given instrument, mode, or pipeline, in either a command-line interface (CLI) or graphical user interface (GUI) mode, but it does not contain the reduction algorithms themselves.

Redux is organized around the principle that any data reduction procedure can be accomplished by running a linear sequence of data reduction steps. It relies on a Reduction class that defines what these steps are and in which order they should be run (the reduction “recipe”). Reductions have an associated Parameter class that defines what parameters the steps may accept. Because reduction classes share common interaction methods, they can be instantiated and called from a completely generic front-end GUI, which provides the capability to load in raw data files, and then:

1. set the parameters for a reduction step,

2. run the step on all input data,

3. display the results of the processing,

and repeat this process for every step in sequence to complete the reduction on the loaded data. In order to choose the correct reduction object for a given data set, the interface uses a Chooser class, which reads header information from loaded input files and uses it to decide which reduction object to instantiate and return.

The GUI is a PyQt application, based around the Application class. Because the GUI operations are completely separate from the reduction operations, the automatic pipeline script is simply a wrapper around a reduction object: the Pipe class uses the Chooser to instantiate the Reduction, then calls its reduce method, which calls each reduction step in order and reports any output files generated. Both the Application and Pipe classes inherit from a common Interface class that holds reduction objects and defines the methods for interacting with them. The Application class additionally may start and update custom data viewers associated with the data reduction; these should inherit from the Redux Viewer class.

All reduction classes inherit from the generic Reduction class, which defines the common interface for all reductions: how parameters are initialized and modified, how each step is called. Each specific reduction class must then define each data reduction step as a method that calls the appropriate algorithm.

The reduction methods may contain any code necessary to accomplish the data reduction step. Typically, a reduction method will contain code to fetch the parameters for the method from the object’s associated Parameters class, then will call an external data reduction algorithm with appropriate parameter values, and store the results in the ‘input’ attribute to be available for the next processing step. If processing results in data that can be displayed, it should be placed in the ‘display_data’ attribute, in a format that can be recognized by the associated Viewers. The Redux GUI checks this attribute at the end of each data reduction step and displays the contents via the Viewer’s ‘display’ method.

Parameters for data reduction are stored as a list of ParameterSet objects, one for each reduction step. Parameter sets contain the key, value, data type, and widget type information for every parameter. A Parameters class may generate these parameter sets by defining a default dictionary that associates step names with parameter lists that define these values. This dictionary may be defined directly in the Parameters class, or may be read in from an external configuration file or software package, as appropriate for the reduction.

Usage

Automatic Mode Execution

The DPS pipeline infrastructure runs a pipeline on previously-defined reduction groups as a fully-automatic black box. To do so, it creates an input manifest (infiles.txt) that contains relative paths to the input files (one per line). The command-line interface to the pipeline is run as:

redux_pipe infiles.txt

The command-line interface will read in the specified input files, use their headers to determine the observation mode, and accordingly the steps to run and any intermediate files to save. Output files are written to the current directory, from which the pipeline was called. After reduction is complete, the script will generate an output manifest (outfiles.txt) containing the relative paths to all output FITS files generated by the pipeline.

Optionally, in place of a manifest file, file paths to input files may be directly specified on the command line. Input files may be raw FITS files, or may be intermediate products previously produced by the pipeline. For example, this command will complete the reduction for a set of FITS files in the current directory, previously reduced through the calibration step of the pipeline:

redux_pipe *CAL*.fits

To customize batch reductions from the command line, the redux_pipe interface accepts a configuration file on the command line. This file may contain any subset of the full configuration file, specifying any non-default parameters for pipeline steps. An output directory for pipeline products and the terminal log level may also be set on the command line.

The full set of optional command-line parameters accepted by the redux_pipe interface are:

-h, --help            show this help message and exit
-c CONFIG, --configuration CONFIG
                      Path to Redux configuration file.
-o OUTDIR, --out OUTDIR
                      Path to output directory.
-l LOGLEVEL, --loglevel LOGLEVEL
                      Log level.

Manual Mode Execution

In manual mode, the pipeline may be run interactively, via a graphical user interface (GUI) provided by the Redux package. The GUI is launched by the command:

redux

entered at the terminal prompt (Fig. 1). The GUI allows output directory specification, but it may write initial or temporary files to the current directory, so it is recommended to start the interface from a location to which the user has write privileges.

From the command line, the redux interface accepts an optional config file (-c) or log level specification (-l), in the same way the redux_pipe command does. Any pipeline parameters provided to the interface in a configuration file will be used to set default values; they will still be editable from the GUI.

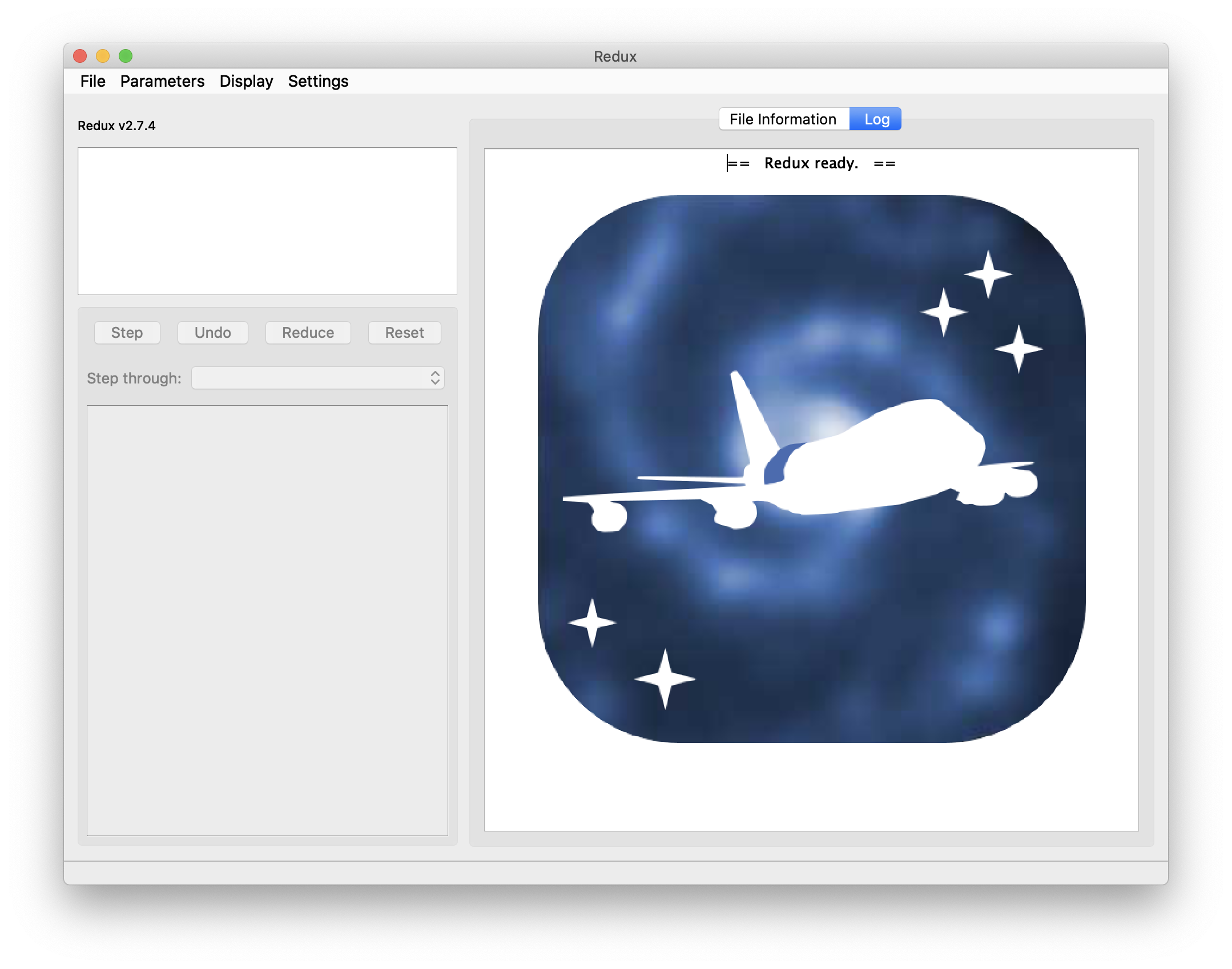

Fig. 1 Redux GUI startup.

Basic Workflow

To start an interactive reduction, select a set of input files, using the File menu (File->Open New Reduction). This will bring up a file dialog window (see Fig. 2). All files selected will be reduced together as a single reduction set.

Redux will decide the appropriate reduction steps from the input files, and load them into the GUI, as in Fig. 3.

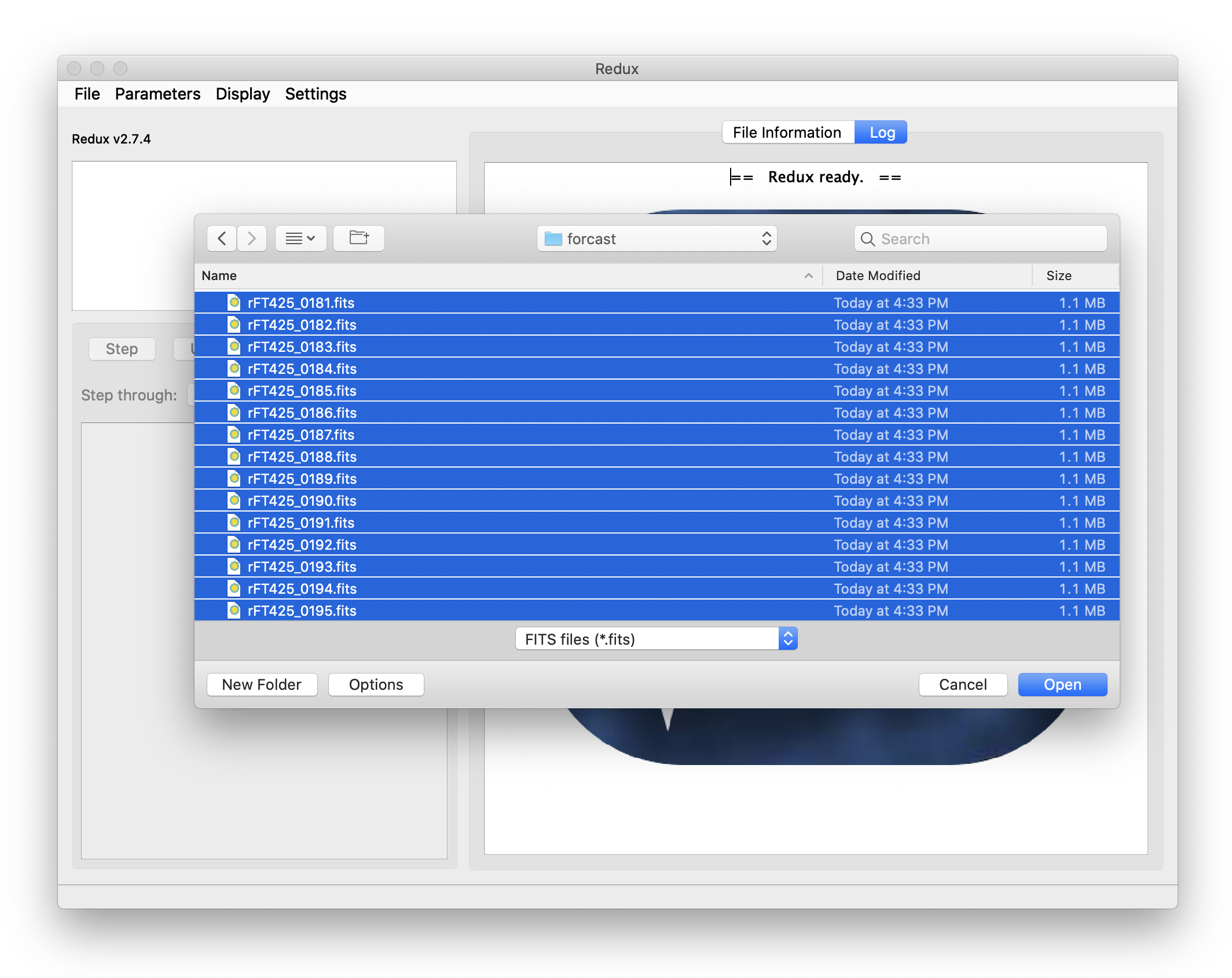

Fig. 2 Open new reduction.

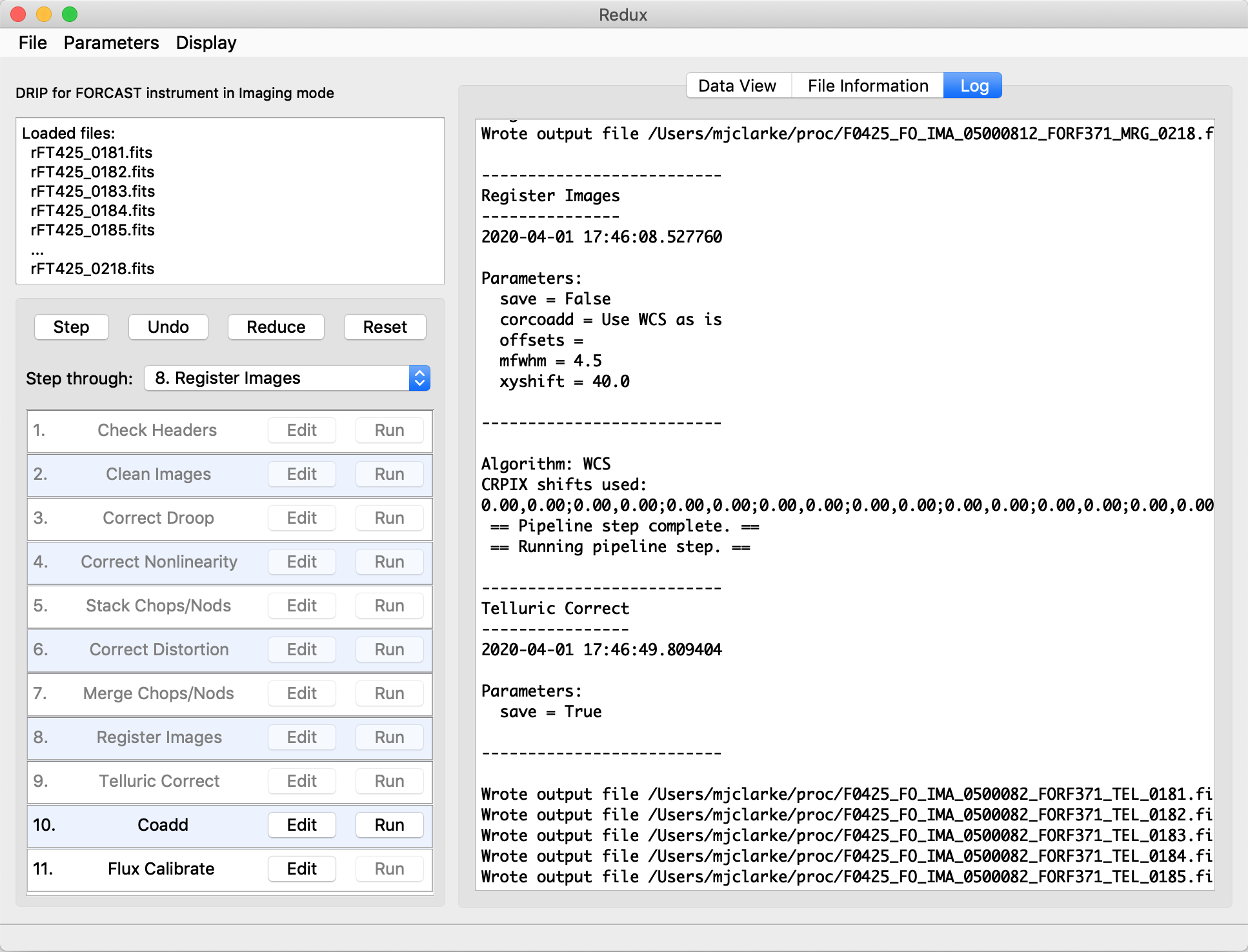

Fig. 3 Sample reduction steps. Log output from the pipeline is displayed in the Log tab.

Each reduction step has a number of parameters that can be edited before running the step. To examine or edit these parameters, click the Edit button next to the step name to bring up the parameter editor for that step (Fig. 4). Within the parameter editor, all values may be edited. Click OK to save the edited values and close the window. Click Reset to restore any edited values to their last saved values. Click Restore Defaults to reset all values to their stored defaults. Click Cancel to discard all changes to the parameters and close the editor window.

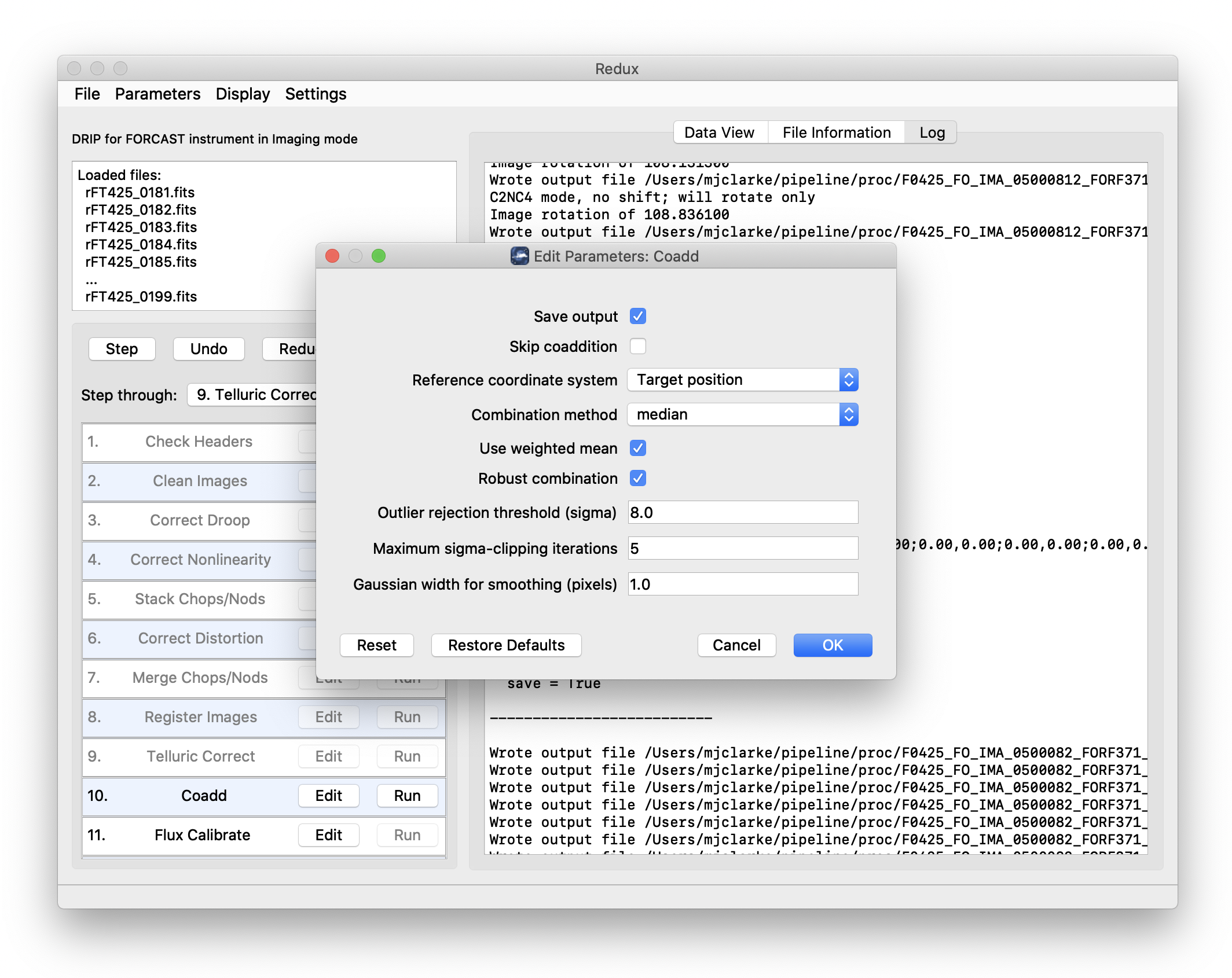

Fig. 4 Sample parameter editor for a pipeline step.

The current set of parameters can be displayed, saved to a file, or reset all at once using the Parameters menu. A previously saved set of parameters can also be restored for use with the current reduction (Parameters -> Load Parameters).

After all parameters for a step have been examined and set to the user’s satisfaction, a processing step can be run on all loaded files either by clicking Step, or the Run button next to the step name. Each processing step must be run in order, but if a processing step is selected in the Step through: widget, then clicking Step will treat all steps up through the selected step as a single step and run them all at once. When a step has been completed, its buttons will be grayed out and inaccessible. It is possible to undo one previous step by clicking Undo. All remaining steps can be run at once by clicking Reduce. After each step, the results of the processing may be displayed in a data viewer. After running a pipeline step or reduction, click Reset to restore the reduction to the initial state, without resetting parameter values.

Files can be added to the reduction set (File -> Add Files) or removed from the reduction set (File -> Remove Files), but either action will reset the reduction for all loaded files. Select the File Information tab to display a table of information about the currently loaded files (Fig. 5).

Fig. 5 File information table.

Display Features

The Redux GUI displays images for quality analysis and display (QAD) in the DS9 FITS viewer. DS9 is a standalone image display tool with an extensive feature set. See the SAO DS9 site (http://ds9.si.edu/) for more usage information.

After each pipeline step completes, Redux may load the produced images into DS9. Some display options may be customized directly in DS9; some commonly used options are accessible from the Redux interface, in the Data View tab (Fig. 6).

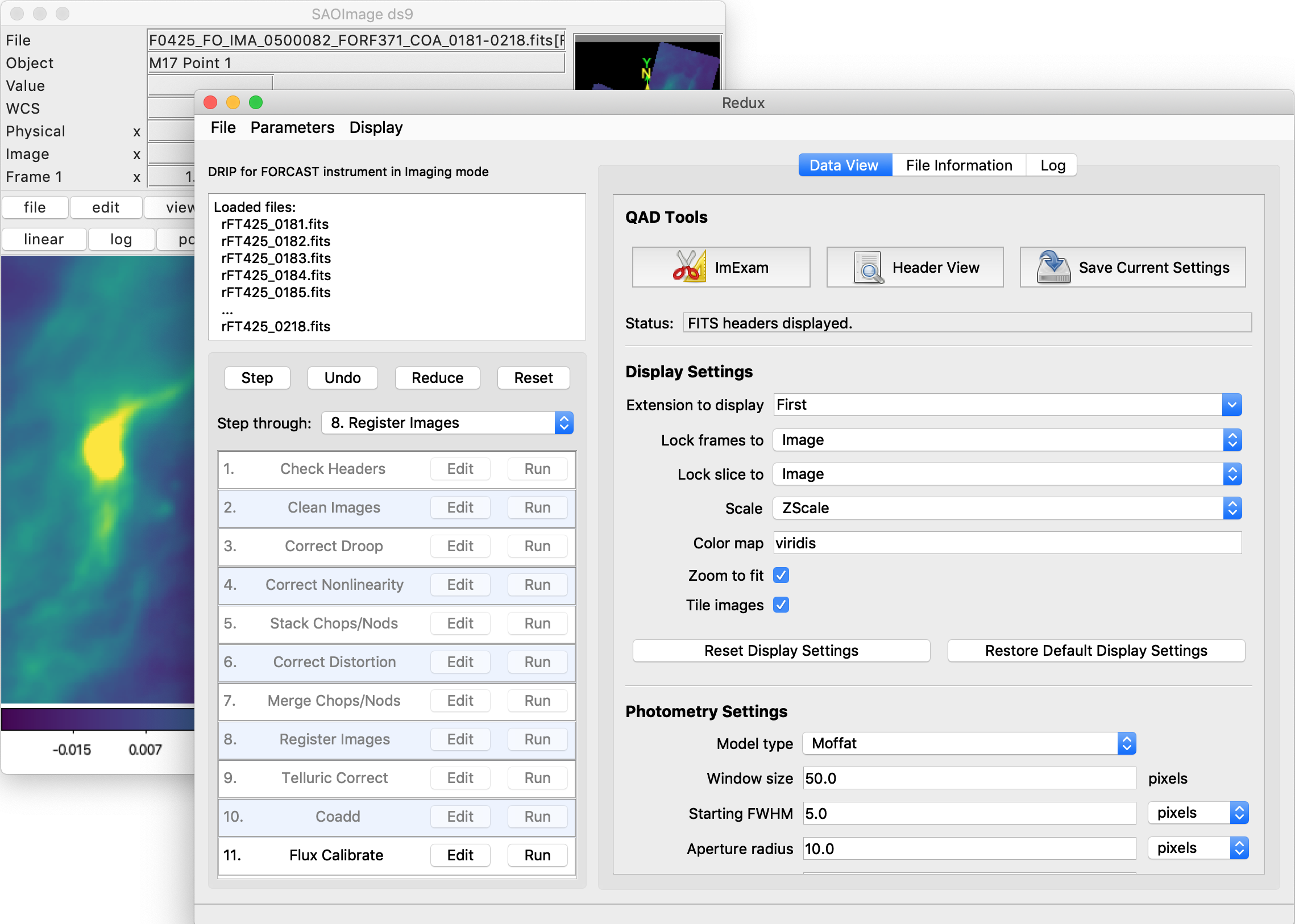

Fig. 6 Data viewer settings and tools.

From the Redux interface, the Display Settings can be used to:

• Set the FITS extension to display (First, or edit to enter a specific extension), or specify that all extensions should be displayed in a cube or in separate frames.

• Lock individual frames together, in image or WCS coordinates.

• Lock cube slices for separate frames together, in image or WCS coordinates.

• Set the image scaling scheme.

• Set a default color map.

• Zoom to fit image after loading.

• Tile image frames, rather than displaying a single frame at a time.

Changing any of these options in the Data View tab will cause the currently displayed data to be reloaded, with the new options. Clicking Reset Display Settings will revert any edited options to the last saved values. Clicking Restore Default Display Settings will revert all options to their default values.

In the QAD Tools section of the Data View tab, there are several additional tools available.

Clicking the ImExam button (scissors icon) launches an event loop in DS9. After launching it, bring the DS9 window forward, then use the keyboard to perform interactive analysis tasks:

• Type ‘a’ over a source in the image to perform photometry at the cursor location.

• Type ‘p’ to plot a pixel-to-pixel comparison of all frames at the cursor location.

• Type ‘s’ to compute statistics and plot a histogram of the data at the cursor location.

• Type ‘c’ to clear any previous photometry results or active plots.

• Type ‘h’ to print a help message.

• Type ‘q’ to quit the ImExam loop.

The photometry settings (the image window considered, the model fit, the aperture sizes, etc.) may be customized in the Photometry Settings. Plot settings (analysis window size, shared plot axes, etc.) may be customized in the Plot Settings. After modifying these settings, they will take effect only for new apertures or plots (use ‘c’ to clear old ones first). As for the display settings, the reset button will revert to the last saved values and the restore button will revert to default values. For the pixel-to-pixel and histogram plots, if the cursor is contained within a previously defined DS9 region (and the regions package is installed), the plot will consider only pixels within the region. Otherwise, a window around the cursor is used to generate the plot data. Setting the window to a blank value in the plot settings will use the entire image.

Clicking the Header button (magnifying glass icon) from the QAD Tools section opens a new window that displays headers from currently loaded FITS files in text form (Fig. 7). The extensions displayed depends on the extension setting selected (in Extension to Display). If a particular extension is selected, only that header will be displayed. If all extensions are selected (either for cube or multi-frame display), all extension headers will be displayed. The buttons at the bottom of the window may be used to find or filter the header text, or generate a table of header keywords. For filter or table display, a comma-separated list of keys may be entered in the text box.

Clicking the Save Current Settings button (disk icon) from the QAD Tools section saves all current display and photometry settings for the current user. This allows the user’s settings to persist across new Redux reductions, and to be loaded when Redux next starts up.

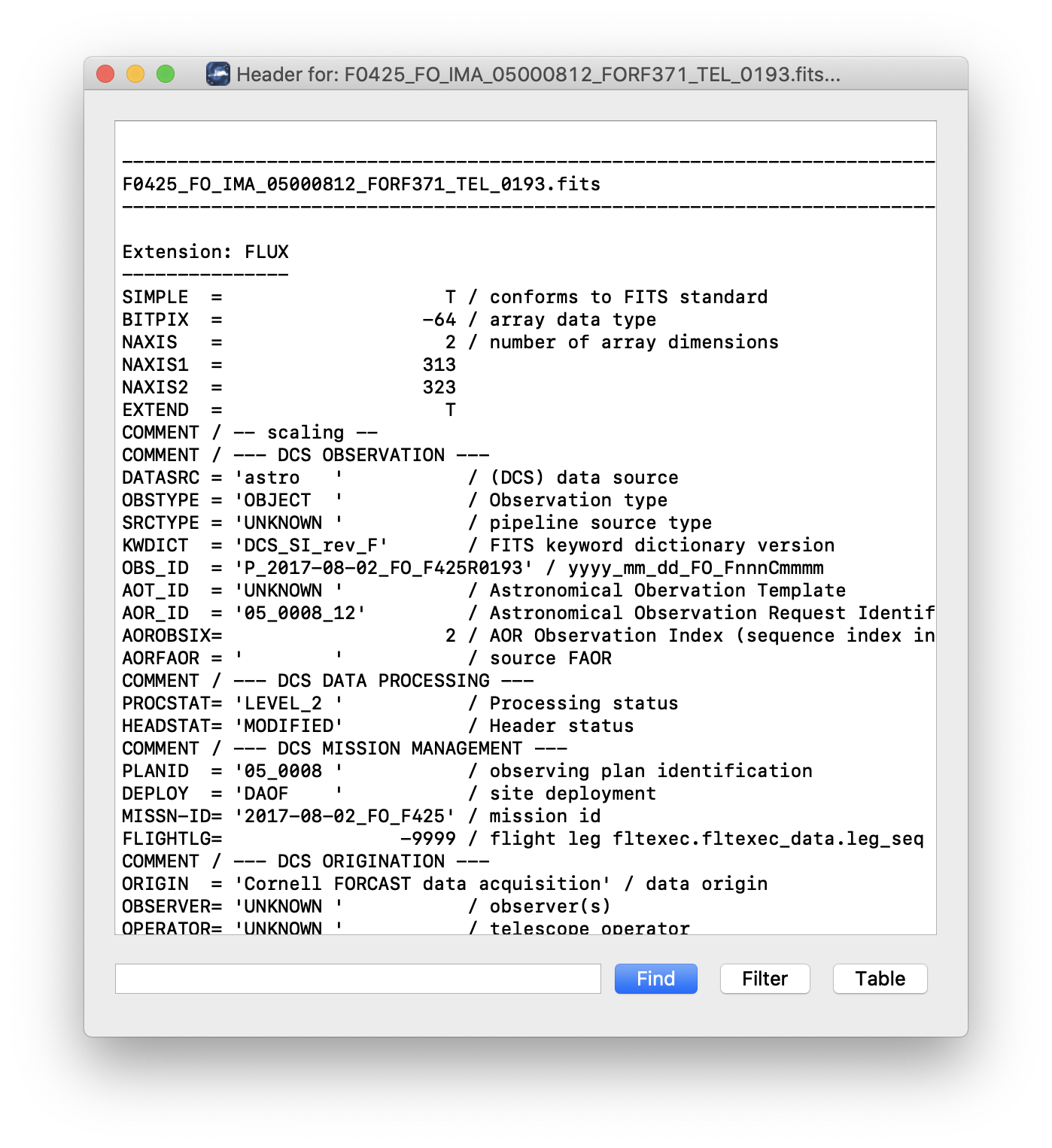

Fig. 7 QAD FITS header viewer.

Reference/API

Redux Core

sofia_redux.pipeline.application Module

Run Redux reduction objects from a GUI interface.

Functions

main()

Run the Redux GUI.

Classes

Application([configuration])

Graphical interface to Redux reduction objects.

Class Inheritance Diagram

sofia_redux.pipeline.chooser Module

Choose Redux reduction objects based on input data.

Classes

Chooser()

Choose Redux reduction objects.

Class Inheritance Diagram

sofia_redux.pipeline.configuration Module

Redux configuration.

Classes

Configuration([config_file])

Set Redux configuration.

Class Inheritance Diagram

sofia_redux.pipeline.interface Module

Interface to Redux reduction objects.

Classes

TidyLogHandler([stream])	Simple log handler for printing INFO messages.
Interface([configuration])	Interface to Redux reduction objects.

Class Inheritance Diagram

sofia_redux.pipeline.parameters Module

Base classes for Redux parameter sets.

Classes

ParameterSet	Ordered dictionary of parameter values for a reduction step.
Parameters([default])	Container class for all parameters needed for a reduction.

Class Inheritance Diagram

sofia_redux.pipeline.pipe Module

Run Redux reduction objects from the command line.

Functions

main()

Run a pipeline from the command line.

Classes

Pipe([configuration])

Command-line interface to data reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.reduction Module

Base class for Redux reduction objects.

Classes

Reduction()

Reduction steps and data.

Class Inheritance Diagram

sofia_redux.pipeline.viewer Module

Base class for Redux viewers.

Classes

Viewer()

Parent class for Redux data viewers.

Class Inheritance Diagram

Redux GUI

sofia_redux.pipeline.gui.main Module

Main window for Redux Qt5 GUI.

Classes

ReduxMainWindow(interface)

Redux Qt5 GUI main window.

Class Inheritance Diagram

sofia_redux.pipeline.gui.matplotlib_viewer Module

Basic Matplotlib viewer for image/plot display.

Classes

MatplotlibPlot([parent, title])	Show plot data in a separate window.
MatplotlibViewer([title])	Basic Matplotlib viewer.

Class Inheritance Diagram

sofia_redux.pipeline.gui.qad_viewer Module

Redux Viewer using QAD modules for display to DS9.

Classes

QADViewerSettings(imviewer[, parent])	Settings widget for QAD Viewer.
QADViewer()	Redux Viewer interface to DS9 and the Eye of SOFIA.

Class Inheritance Diagram

sofia_redux.pipeline.gui.textview Module

Text viewer widget for use with QAD and Redux.

Classes

TextView([parent])

View, find, and filter text.

Class Inheritance Diagram

sofia_redux.pipeline.gui.widgets Module

Widgets and other useful classes for support of the Redux GUI.

Classes

PipeStep([parent, stepname, index])	Reduction step widget.
ProgressFrame([parent])	Progress bar widget for reduction steps.
EditParam([parent, name, current, default, ...])	Edit parameters for a reduction step.
DataTableModel(data[, parent])	Model for the File Information table view.
CustomSignals()	Custom signals for widgets to emit.
TextEditLogger()	Log handler for a TextEdit-based logging window.
RemoveFilesDialog([parent, loaded_files])	Dialog to select files for removal.
ConfigView([parent])	View and edit current configuration values.
ParamView([parent])	View and filter current parameter values.
StepRunnable(step_function, nsteps)	Worker class to run a reduction step.
LoadRunnable(load_function, data, param, dirname)	Worker class to load reduction data.
GeneralRunnable(run_function, *args, **kwargs)	Worker class to run a general function.

Class Inheritance Diagram

QAD Viewer

sofia_redux.pipeline.gui.qad.qad_app Module

Standalone front-end for QAD display tool.

Functions

main()

Quality Analysis and Display tool (QAD).

sofia_redux.pipeline.gui.qad.qad_dialogs Module

Dialogs for the QAD standalone GUI.

Classes

DispSettingsDialog([parent, current, default])	Retrieve user preferences for display parameters.
PhotSettingsDialog([parent, current, default])	Retrieve user preferences for photometry parameters.
PlotSettingsDialog([parent, current, default])	Retrieve user preferences for plot parameters.

Class Inheritance Diagram

sofia_redux.pipeline.gui.qad.qad_headview Module

FITS header viewing widget.

Classes

HeaderViewer([parent])

View, find, and filter text from FITS headers.

Class Inheritance Diagram

sofia_redux.pipeline.gui.qad.qad_imview Module

DS9 Image Viewer for QAD.

Classes

QADImView()

View FITS images in DS9.

Class Inheritance Diagram

sofia_redux.pipeline.gui.qad.qad_main_panel Module

Main GUI window for the QAD standalone tool.

Classes

QADMainWindow()

QAD Qt5 GUI main window.

Class Inheritance Diagram

SOFIA Redux

sofia_redux.pipeline.sofia.sofia_app Module

Run SOFIA Redux reduction objects interactively.

Functions

main()

Run the Redux GUI.

sofia_redux.pipeline.sofia.sofia_chooser Module

Choose SOFIA reduction objects based on input data.

Classes

SOFIAChooser()

Choose SOFIA Redux reduction objects.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.sofia_configuration Module

SOFIA Redux configuration.

Classes

SOFIAConfiguration([config_file])

Set Redux configuration for SOFIA pipelines.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.sofia_pipe Module

Run SOFIA Redux reduction objects from the command line.

Functions

main()

Run Redux in batch mode.

sofia_redux.pipeline.sofia.sofia_utilities Module

Functions

parse_apertures(input_position, nfiles[, ...])	Parse aperture parameters from input string.
parse_bg(bg_string, nfiles)	Parse background parameters from input string.

sofia_redux.pipeline.sofia.exes_reduction Module

EXES Reduction pipeline steps

Classes

EXESReduction()

EXES reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.fifils_reduction Module

FIFI-LS Reduction pipeline steps

Classes

FIFILSReduction()

FIFI-LS reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.flitecam_imaging_reduction Module

FLITECAM Imaging Reduction pipeline steps

Classes

FLITECAMImagingReduction()

FLITECAM imaging reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.flitecam_reduction Module

FLITECAM Reduction pipeline steps

Classes

FLITECAMReduction()

FLITECAM reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.flitecam_slitcorr_reduction Module

FLITECAM Grism Slit Correction Reduction pipeline steps

Classes

FLITECAMSlitcorrReduction()

FORCAST spesctroscopic slit correction reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.flitecam_spatcal_reduction Module

FLITECAM Grism Spatcal Reduction pipeline steps

Classes

FLITECAMSpatcalReduction()

FLITECAM spectroscopic spatial calibration reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.flitecam_spectroscopy_reduction Module

FLITECAM Spectroscopy Reduction pipeline steps

Classes

FLITECAMSpectroscopyReduction()

FLITECAM spectroscopy reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.flitecam_wavecal_reduction Module

FLITECAM Grism Wavecal Reduction pipeline steps

Classes

FLITECAMWavecalReduction()

FLITECAM wavelength calibration reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.forcast_imaging_reduction Module

FORCAST Imaging Reduction pipeline steps

Classes

FORCASTImagingReduction()

FORCAST imaging reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.forcast_reduction Module

FORCAST Reduction pipeline steps

Classes

FORCASTReduction()

FORCAST reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.forcast_slitcorr_reduction Module

FORCAST Grism Calibration Reduction pipeline steps

Classes

FORCASTSlitcorrReduction()

FORCAST spesctroscopic slit correction reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.forcast_spatcal_reduction Module

FORCAST Grism Calibration Reduction pipeline steps

Classes

FORCASTSpatcalReduction()

FORCAST spectroscopic spatial calibration reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.forcast_spectroscopy_reduction Module

FORCAST Spectroscopy Reduction pipeline steps

Classes

FORCASTSpectroscopyReduction()

FORCAST spectroscopy reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.forcast_wavecal_reduction Module

FORCAST Grism Wavecal Reduction pipeline steps

Classes

FORCASTWavecalReduction()

FORCAST wavelength calibration reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.hawc_reduction Module

HAWC Reduction pipeline steps

Classes

HAWCReduction()

HAWC+ reduction steps.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.exes_parameters Module

EXES parameter sets.

Classes

EXESParameters([default, base_header])

Reduction parameters for the EXES pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.fifils_parameters Module

FIFI-LS parameter sets.

Classes

FIFILSParameters([basehead])

Reduction parameters for the FIFI-LS pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.flitecam_imaging_parameters Module

FLITECAM Imaging parameter sets.

Classes

FLITECAMImagingParameters([default, config, ...])

Reduction parameters for the FLITECAM Imaging pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.flitecam_parameters Module

FLITECAM parameter sets.

Classes

FLITECAMParameters([default, config, ...])

Reduction parameters for the FLITECAM pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.flitecam_slitcorr_parameters Module

FLITECAM parameter sets.

Classes

FLITECAMSlitcorrParameters([default, ...])

Reduction parameters for the FLITECAM grism slitcorr pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.flitecam_spatcal_parameters Module

FLITECAM parameter sets.

Classes

FLITECAMSpatcalParameters([default, config, ...])

Reduction parameters for the FLITECAM grism spatcal pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.flitecam_spectroscopy_parameters Module

FLITECAM spectroscopy parameter sets.

Classes

FLITECAMSpectroscopyParameters([default, ...])

Reduction parameters for the FLITECAM spectroscopy pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.flitecam_wavecal_parameters Module

FLITECAM parameter sets.

Classes

FLITECAMWavecalParameters([default, config, ...])

Reduction parameters for the FLITECAM grism wavecal pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.forcast_imaging_parameters Module

FORCAST Imaging parameter sets.

Classes

FORCASTImagingParameters([default, ...])

Reduction parameters for the FORCAST Imaging pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.forcast_parameters Module

FORCAST parameter sets.

Classes

FORCASTParameters([default, ...])

Reduction parameters for the FORCAST pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.forcast_slitcorr_parameters Module

FORCAST parameter sets.

Classes

FORCASTSlitcorrParameters([default, ...])

Reduction parameters for the FORCAST grism slitcorr pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.forcast_spatcal_parameters Module

FORCAST parameter sets.

Classes

FORCASTSpatcalParameters([default, ...])

Reduction parameters for the FORCAST grism spatcal pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.forcast_spectroscopy_parameters Module

FORCAST parameter sets.

Classes

FORCASTSpectroscopyParameters([default, ...])

Reduction parameters for the FORCAST spectroscopy pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.forcast_wavecal_parameters Module

FORCAST parameter sets.

Classes

FORCASTWavecalParameters([default, ...])

Reduction parameters for the FORCAST grism wavecal pipeline.

Class Inheritance Diagram

sofia_redux.pipeline.sofia.parameters.hawc_parameters Module

HAWC parameter sets.

Classes

HAWCParameters([config, param_lists, mode])

Reduction parameters for the HAWC pipeline.

Class Inheritance Diagram
